Marathon产品家族 第三期 | PCA系列 (IE5) 超高效电机—复杂工况下的可靠硬实力！

    非常感谢您长期以来对Marathon电机的信赖与支持，Marathon电机一直致力于为客户提供优质的产品和服务，今天为大家介绍的是PCA系列 (IE5) 超高效电机。

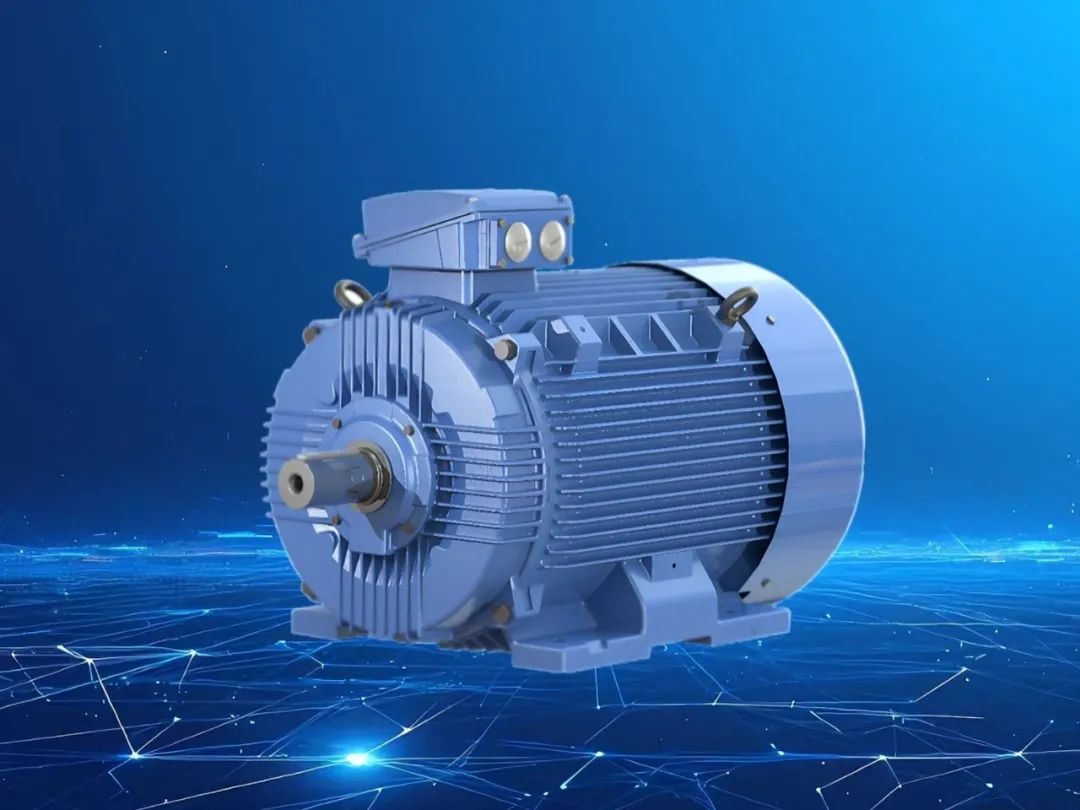

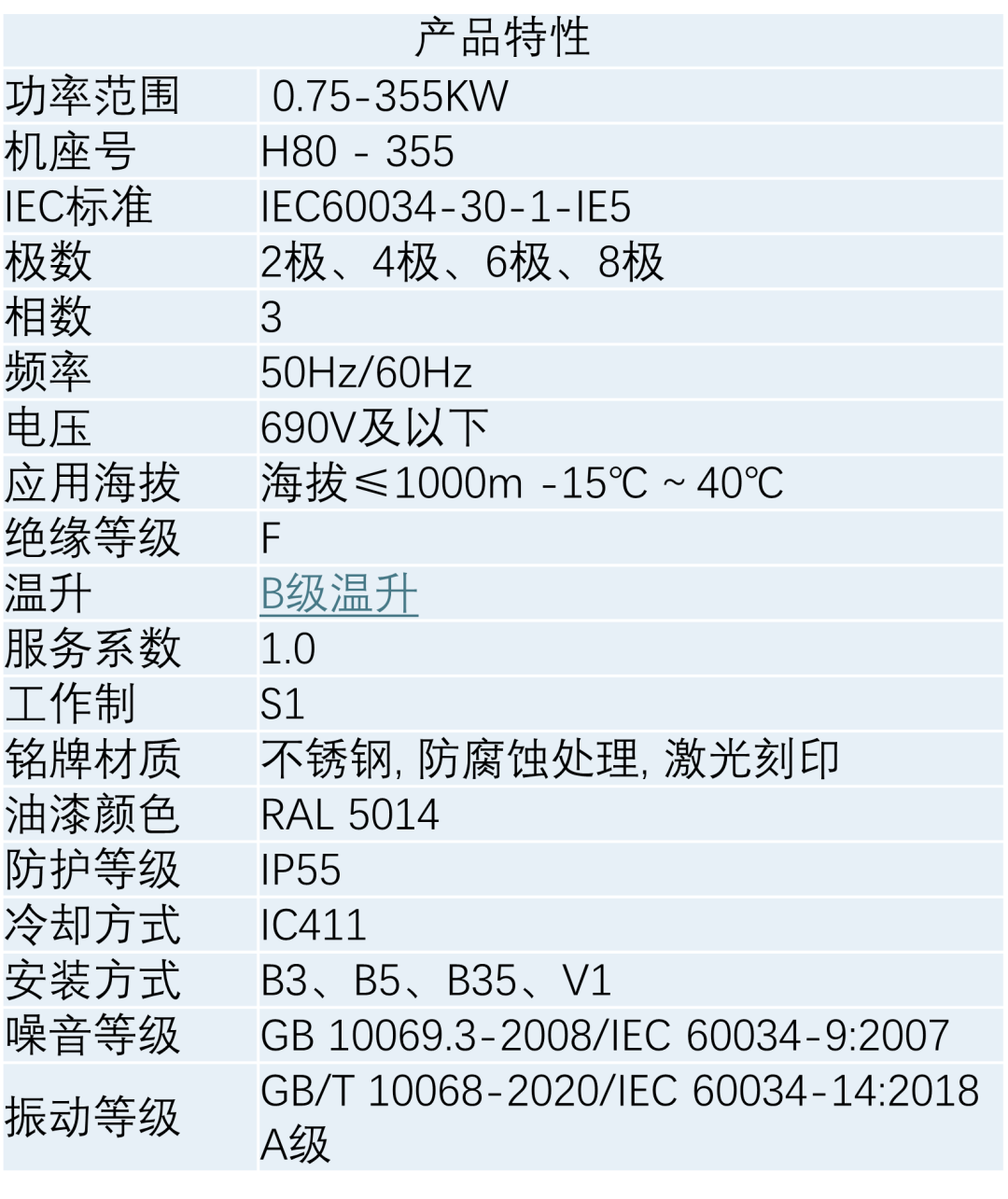

    PCA系列 (IE5) 超高效电机采用TerraMAX低压电机平台进行设计，该系列电机具备卓越性能、可靠品质和出色的耐用性。PCA系列电机深度融入工业自动化脉络，成为风机、水泵、压缩机等通用机械设备的理想动力内核。

IE5超高效率：符合IEC 60034-30-1:2014 标准及GB1能效，效率突破传统极限，较IE4电机进一步提升，降低能耗成本，助力企业实现低碳转型。

宽功率覆盖：功率范围0.75-355kW，支持 50Hz/60Hz频率运行，适配690V及以下电压环境，满足不同场景的动力需求。

铸铁机身：采用抗拉强度≥200MPa的高级铸铁机座，搭配加强筋结构端盖，抗压抗振，适应高应力工况。

精密轴承系统：驱动端轴承特殊锁定设计，防止轴向位移；标配深沟球轴承，可选NU型滚柱轴承，承载能力提升使得寿命更长。

低噪音与平衡：双向风叶设计，气流优化减少湍流，噪音低于同类产品；转子与风叶独立平衡，动平衡等级可达G1，运行更平稳。

IP55 防护等级：全封闭风扇冷却结构，防尘防水，可抵御强力喷射水流，适应室内外及潮湿环境。

多重保护配置：支持PTC热敏电阻、空间加热器、振动传感器等选件，实时监测电机状态，预防过载、过热风险。

存储与维护：提供专业存储指南，包括轴承润滑、轴转动要求等，确保电机长期存放性能稳定。

质保与支持：全球联保，提供选型、安装、调试一站式服务。

定制化方案：支持特殊电压、频率、轴材及涂装需求，灵活满足个性化场景。

Thank you very much for your long-term trust and support for Marathon motors. Marathon motors have always been committed to providing customers with high-quality products and services. Today, the product we are introducing to you is the PCA series (IE5) super premium efficiency motors.

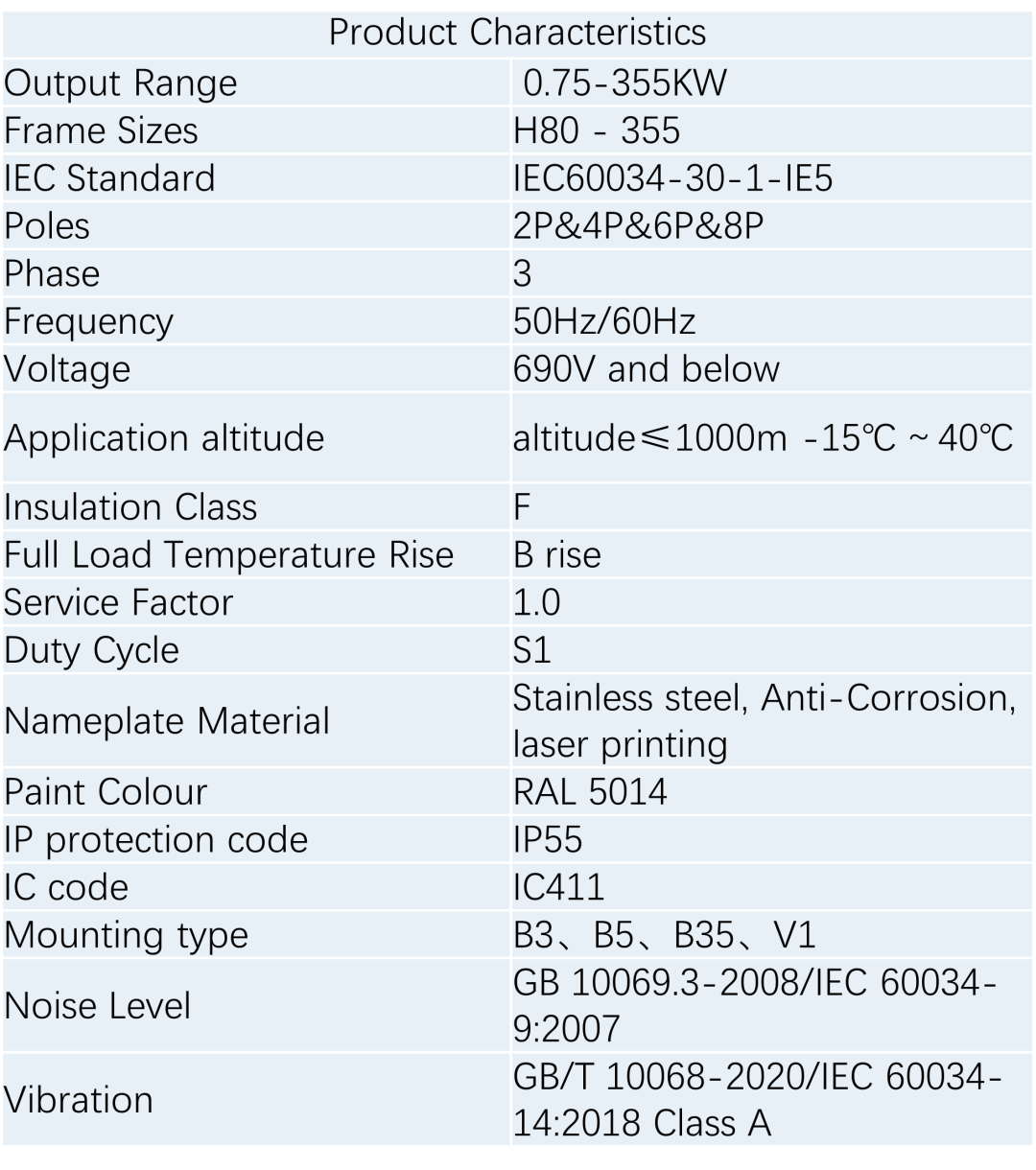

PCA series (IE5) super premium efficiency motors are based on the TerraMAX low voltage motor platform and therefore hold the promise of performance, quality and long lasting reliability to all customers.The PCA series motors are deeply integrated into the industrial automation framework, becoming the ideal power core for general mechanical equipment such as fans, pumps, and compressors.

IE5 Super Premium Efficiency Level: Complies with IEC 60034-30-1:2014 standards and GB1 energy efficiency requirements. It breaks through traditional efficiency limits, further improving upon IE4 motors, reducing energy consumption costs, and helping enterprises achieve low-carbon transformation.

Wide Power Coverage: With a power range of 0.75-355kW, it supports operation at 50Hz/60Hz frequencies and adapts to voltage environments of 690V and below, meeting the power needs of different scenarios.

Cast Iron Body: Utilizes high-grade cast iron frames with tensile strength ≥200MPa, paired with ribbed end covers for enhanced compression and vibration resistance, suitable for high-stress working conditions.

Precision Bearing System: Special locking design on the drive end (DE) bearings prevents axial displacement. Standard deep-groove ball bearings are equipped, with optional NU-type roller bearings to significantly improve load capacity and extend service life.

Low Noise and Balance: The bidirectional fan design optimizes airflow to reduce turbulence, resulting in lower noise levels than comparable products. The rotor and fan are balanced independently, achieving a dynamic balance grade of up to G1 for smoother operation.

IP55 Protection Rating: With a totally enclosed fan-cooled (TEFC) structure, it offers dust and water protection, resisting strong water jets and adapting to indoor, outdoor, and humid environments.

Multiple Protection Configurations: Supports optional components such as PTC thermistors, space heaters, and vibration sensors to monitor the motor's status in real time, preventing risks of overload and overheating.

Storage and Maintenance: Professional Storage Guide to Ensure Stable Performance of Motors during Long-Term Storage, Including Bearing Lubrication and Shaft Rotation Requirements.

Warranty and Support: Global warranty coverage with one-stop services for model selection, installation, and commissioning.

Customized Solutions: Supports special voltage, frequency, shaft materials, and coating requirements to flexibly meet personalized application scenarios.

With an over one-hundred-years history, Marathon Motors is one of the leaders in engineering, manufacturing of industrial motors and services. We can tailer for your budgetary planning with integration solutions.
